Welded Plate-and-block Heat Exchangers

The Alfa Laval Compabloc range provides compact, efficient and reliable heat transfer for a wide range of process duties. Full and easy cleanability on both circuits make them the most service-friendly welded heat exchangers on the market. It’s easy to see why together, Compabloc, Compabloc+ and Compabloc Free Flow have become the undisputed champions of heat exchange in some of the most demanding applications.

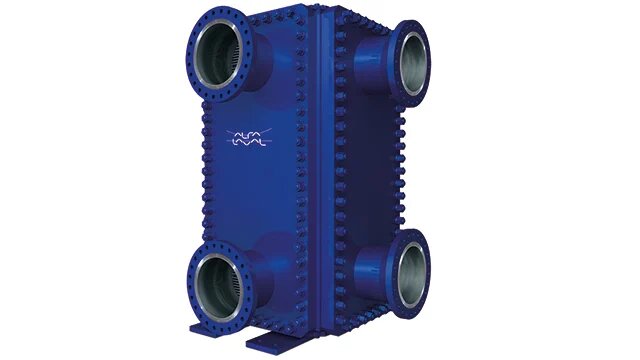

The Alfa Laval Compabloc range

• Reliable, efficient technology with a proven track record in a wide range of process duties
• Advanced, specialized designs for higher pressure duties as well as duties with strict hygiene requirements
• Full mechanical cleanability with easy removal of fouling and a design that protects against corrosion
• Compact design creates new possibilities to resolve bottlenecks and boost productivity
• Access to a global network of experienced service professionals who can assist you onsite

With a complete family of technologies, the Compabloc range can support applications with extremely dirty and aggressive media as well as those with the highest hygienic requirements. Today, Compabloc heat exchangers are found in all types of process duties all over the world, where they provide as much as 5 times the thermal efficiency of traditional shell-and-tube solutions. Where there are higher pressure demands, the Compabloc+ offers the same level of efficiency with safe operation up to 60 bar. And for pharmaceutical applications, the Compabloc Free Flow has a special design tailored to the requirements of modern API production. Not sure which Compabloc is right for you?

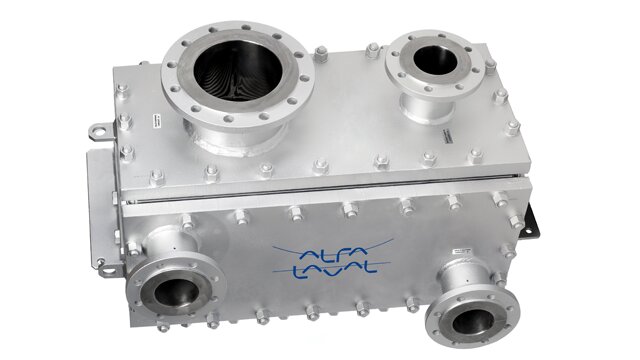

Compabloc Free Flow

Alfa Laval Compabloc Free Flow is a compact condenser with very high heat transfer efficiency specifically designed for the pharmaceutical industry and the high hygienic requirements of modern API production. The hygienic design, high performance, low operating costs and easy installation combine to ensure patient safety, reliable uptime and production efficiency.

Pack more condensing capacity into existing space in your API production

• Easy to validate – fully meets the requirements for installation in cGMP processes
• All-welded design and available in corrosion-resistant materials, making it the perfect replacement for graphite block or shell-and-tube
• State-of-the-art hygienic design makes cleaning quick, easy and reliable while low hold-up volumes reduce cleaning solvent usage
• Compact size and low weight enable you to increase capacity even when space is limited – perfect for retrofitting
• Proven low operating and maintenance costs

Alfa Laval Compabloc Free Flow condenser uses corrosion-resistant materials. Its compact size makes it perfect for retrofitting and means lower operating costs when it comes to cleaning. The wide free-flow channel results in a very low pressure drop making it ideal for deep vacuum condensing duties. The turbulent flow on the cooling media side minimizes scaling and facilitates CIP.

Compabloc Free Flow offers state-of-the-art hygienic design and fully meets the requirements for installation in stringent cGMP processes. This makes Compabloc Free Flow suitable for pharmaceutical processes such as API manufacturing

New possibilities with compact condenser

Patrik Arvidsson, Business Manager at Alfa Laval, explains the benefits of using compact condensers in API production.

Ease of cleaning and inspection

Perfect for API manufacturing processes

Efficient cleaning of the reactor condenser is vital for patient safety. A difficult to clean condenser increase carry-over and cross-contamination between batches. For a multi-purpose reactor this can be disastrous if different medicines mix. It can also be a serious problem for a single-purpose reactor since it reduces traceability. Cleaning and validating the cleaning for a Compabloc Free Flow is quick and easy thanks to the full drainability and absence of crevices, dead spots and contact points on the product side. Inspections are performed easily through the nozzles or by simply opening the panels, giving you full access to all product-wetted surfaces.

Graphite blocks are widely used as condensers in API manufacturing processes thanks to their ability to withstand aggressive media. However, as many pharmaceutical companies have experienced, graphite blocks have a major disadvantage. They release carbon particles and resin into the product stream. Compabloc Free Flow is available in corrosion-resistant materials, making it the perfect replacement for graphite block condensers in API manufacturing.

How it works

The Compabloc Free Flow comes in two versions. At its core is a stack of corrugated heat transfer plates made of stainless steel or alloy C22 that are alternately welded to form channels. The vapour and the cooling medium flow through alternate channels, causing the vapour to condense on the cold plates. The wide free-flow channel results in a very low pressure drop, making it ideal for deep vacuum condensing duties. On the coolant side, baffles direct the cooling media back and forth through the channels to increase turbulence and thermal efficiency.

The complete plate pack slides inside a steel frame bolted to pressure-retaining heads. Four removable panels contain the inlet and outlet connections and give easy access to all product-wetted surfaces.

Single-pass condenser

Two-pass condenser

This version is suitable when the vapour contains small amounts of inert gases. Vapour enters through the big inlet on the top panel and condenses on the plates. The condensate exits through the sloped, drainable bottom panel.

The two pass version can be used when the vapour contains a larger portion of inert gases. Main condensation takes place in the first pass where the condensable part of the vapour condenses on the plates before exiting through the sloped, drainable bottom panel.

The non-condensable vapours go through the second pass where they are sub-cooled to maximize condensation. Turbulence in the second pass helps to eliminate mist, and vacuum is easily drawn from the outlet of the second pass. With a two-pass condenser there is no need for an additional vapour separator, since separation takes place in the unit.

Customer references

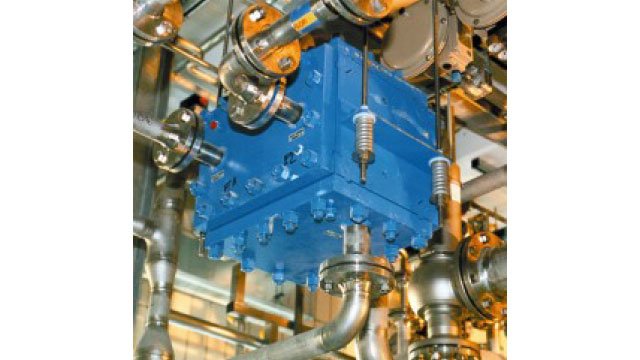

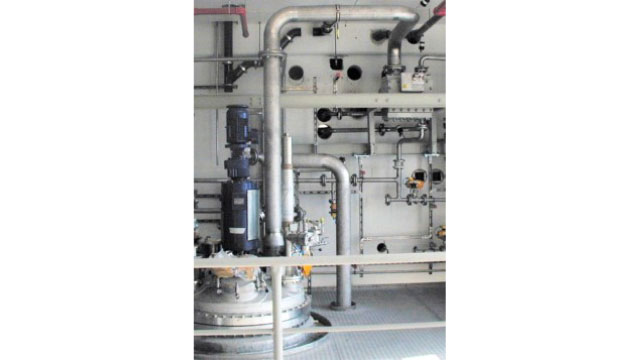

Learn more about pharmaceutical plants across the world using Alfa Laval Compabloc and Compabloc Free Flow as condensers.
